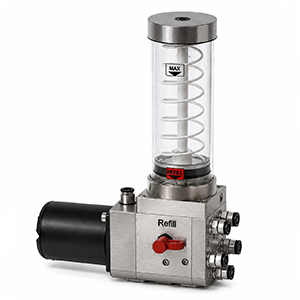

Dosing Pump BM5

Multi-Point Lubrication Pump

Key characteristics:
- Voltage: 24 Vdc
- Flow rate per outlet: 60 mm³ / stroke
- Flow rate for the collector plate: 300 mm³ / stroke
- Maximum delivery pressure: 70 bar
- Tank capacity: approx. 180 ml
- Mounting bracket
- Low lubricant level warning
- Degree of protection according to EN 60529: IP54

Compact 1–5 Point Lubrication Pump

The BM5 metering pump is a compact lubrication system equipped with a 24 Vdc motor.
It is designed to supply lubricant directly to one to five lubrication points, with a maximum operating rate of one lubrication cycle per minute.
The pump is fitted with a low lubricant level sensor that provides a warning signal when the reservoir level is low.

The BM5 can be configured to supply lubricant to one to five individual lubrication points.
Alternatively, all outlets can be combined into a single outlet by means of a collector plate.

APPLICATIONS

- For lubricating guideways on machine tools
- For lubricating swivel joints on machine tools
- For lubricating bearing seats

ADVANTAGES

- Configurable to supply lubricant to one to five lubrication points.
- Optionally, all outlets can be combined into a single outlet by means of a collector plate.
- Integrated low lubricant level warning.
