Key features:
- Operating pressure: 60 bar (870 psi)
- Reservoir: 1.2/ 3.0 litres
- Temperature: From 32 to 167°F (from 0 to 80 °C)
- Flow rate: 10.5 cm³/stroke
- Transmission: PFluid =9,5 x (PAir – 1,2)
- Operating medium: Mineral oil, fluid grease
- Viscosity: from 50 to 750 mm²/s - NLGI 000-0 (according to fluid grease release list)
- Pipe connection: Ø 6 mm
- IP rating as per EN60529: IP67

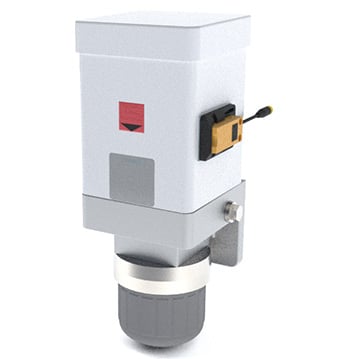

The AB-P single piston pumps are robust pneumatic pumps suitable for automatic lubrications, which can be done several times daily to maximum once per minute.
These piston pumps are equipped with 2 different reservoirs, 1.2 and 3.0 litres, to meet the needs of different lubrication systems and types of machines.
The single piston pumps operate with mineral oil (range of viscosity: 50 to 750 mm²/s) or fluid grease (NLGI 000-0), and can be easily filled manually or with a filling device.
Their more efficient design allows you to increase productivity and reduce downtime.
APPLICATIONS
These pneumatic pumps are used for different types of oil lubrication systems and in a very large range of applications for their high quality and high performance.
They are applicable for automatic lubrication of bearings and parts of machines.
They are ideal for daily or up to each minute lubrication of small machine applications, machine tools, wood processing machines, general industry and single point lubrication with oil or fluid grease.
