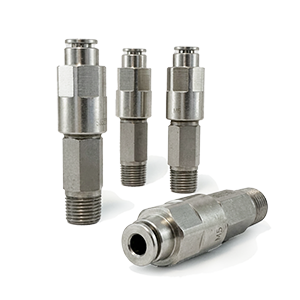

33V Injector Series

Downloads
Part Numbers

Positive Displacement Injectors

Key features:
- Delivery: 0.015 - 0.16 / 0.20 - 0.50 / 0.75 - 1.00
- Minimum pressure: bar 12 (175)
- Maximum pressure:bar 50 (725)
- Maximum pressure of release: bar  4 (58)
- Lubricant: Oil 32 - 2000 cSt; Grease NLGI 0
- Minimum time of release (second): 32-250 cSt; 10  260-1000 cSt; 200 NLGI 0 200

The 33V injector System is one of the latest direct positive displacement injector technology developed by Dropsa.
The technology provides precise and failsafe dosage of oil independently from viscosity, temperature or pressure.
The new cartridge format allows substantial new application possibilities. It also is entirely produced, assembled and tested on an automated production line offering great cost saving and excelent quality.
When combined with a competitive pump package such as the electrically driven Smart Pump, a high performance system can be obtained at prices previously only available choosing a Manual Orifice systems.
Our push-lock system allows further installation costs reduction.

Product Features:
* 1/8"-1/8" BSP injector cartridge allows many new configurations.
* Parallel thread and soft seal to automotive specifications.
* Point mounting, Manifold mounting and Internal mounting possibilities.
* Can be designed directly into machine casting.
* High Reliability. The 33V Injectors are fully assembled, tested and certified on a robotic system.

Downloads

Manuals

3D Models

33V (66.18 KB).

3D Application form.

PART NUMBERS

Part numbers - Models found

Availability	Part Number	Description	Price	Lot Size	Buy
	33V0015	33V-1/8-1/8 0.015CC
	33V003	33V-1/8-1/8 0.03CC
	33V003C	33V-1/8-1/8 0.03CC CYLINDRICAL
	33V006	33V-1/8-1/8 0.06CC
	33V006C	VALVE-33 1/8-1/8 0.06CC VITON
	33V010	33V-1/8-1/8 0.10CC
	33V010C	33V-1/8-1/8 0.10CC CYLINDRICAL
	33V016	33V-1/8-1/8 0.16CC
	33V016C	33V-1/8-1/8 0.16CC CYLINDRICAL
	33V020	33V-1/8-1/8 0.2CC
	33V020C	33V-G1/8 G1/8 0.2CC
	33V030	33V-1/8-1/8 0.3CC
	33V030C	33V-G1/8 G1/8 0.3CC
	33V050	33V-1/8-1/8 0.5CC
	33V050C	33V-G1/8 G1/8 0.5CC
	33VCCF1	VALVE 33 FITTING 2 WAYS F 90° FT
	33VCCF1003	33V-2VF 0.03 1/8
	33VCCF1006	33V-2VF 0.06 1/8
	33VCCF1010	33V-2VF 0.10 1/8
	33VCCF1016	33V-2VF 0.16 1/8
	33VCCF1030	33V-2VF 0.30 1/8
	33VCCF1050	33V-2VF 0.50 1/8
	33VCCM5	VALVE 33 FITTING 2 WAYS M 90° FT
	33VCCM5006	33V-2VM 0.06 5/16-24NF
	33VCCM5010	33V-2VM 0.10 5/16-24NF
	33VCCM5016	33V-2VM 0.16 5/16-24NF
	33VCCM5030	33V-2VM 0.30 5/16-24NF
	33VCNF1	VALVE 33 FITTING 2 WAYS F 90°
	33VCNF1003	33V-2VF 0.03 1/8
	33VCNF1006	33V-2VF 0.06 1/8
	33VCNF1010	33V-2VF 0.10 1/8
	33VCNF1016	33V-2VF 0.16 1/8
	33VCNF1020	33V-2VF 0.20 1/8
	33VCNF1030	33V-2VF 0.30 1/8
	33VCNF1050	33V-2VF 0.50 1/8
	33VCNM5	VALVE 33 FITTING 2 WAYS M 90°
	33VCNM5003	33V-2VM 0.03 5/16-24NF
	33VCNM5006	33V-2VM 0.06 5/16-24NF
	33VCNM5010	33V-2VM 0.10 5/16-24NF
	33VCNM5016	33V-2VM 0.16 5/16-24NF
	33VCNM5020	33V-2VM 0.20 5/16-24NF
	33VCNM5030	33V-2VM 0.30 5/16-24NF
	33VCNM5050	33V-2VM 0.50 5/16-24NF
	33VECF1	VALVE 33 FITTING 3 WAYS F FT
	33VECF1003	33V-3VF 0.03 1/8
	33VECF1006	33V-3VF 0.06 1/8
	33VECF1010	33V-3VF 0.10 1/8
	33VECF1016	33V-3VF 0.16 1/8
	33VECF1030	33V-3VF 0.30 1/8
	33VECF1050	33V-3VF 0.50 1/8
	33VECM5010	33V-3VM 0.10 5/16-24NF
	33VECM5016	33V-3VM 0.16 5/16-24NF
	33VECM5030	33V-3VM 0.30 5/16-24NF
	33VENF1003	33V-3VF 0.03 1/8
	33VENF1006	33V-3VF 0.06 1/8
	33VENF1010	33V-3VF 0.10 1/8
	33VENF1016	33V-3VF 0.16 1/8
	33VENF1020	33V-3VF 0.20 1/8
	33VENF1030	33V-3VF 0.30 1/8
	33VENF1050	33V-3VF 0.50 1/8
	33VENM5006	33V-3VM 0.06 5/16-24NF
	33VENM5010	33V-3VM 0.10 5/16-24NF
	33VENM5016	33V-3VM 0.16 5/16-24NF
	33VENM5020	33V-3VM 0.20 5/16-24NF
	33VENM5030	33V-3VM 0.30 5/16-24NF
	33VENM5050	33V-3VM 0.50 5/16-24NF
	33VIF1	VALVE 33 FITTING 1/8 F
	33VIF8075	33V-1/8-M8X1 F 0.75CC
	33VIF8100	33V-1/8-M8X1 F 1CC
	33VIM5	33V-STRAIGHT FITTING M 5/16
	33VIM5003	33V-1VM 0.03 5/16
	33VIM5006	33V-1VM 0.06 5/16
	33VIM5010	33V-1VM 0.10 5/16
	33VIM5016	33V-1VM 0.16 5/16
	33VIM5020	33V-1VM 0.20 5/16
	33VIM5030	33V-1VM 0.30 5/16
	33VIM5050	33V-1VM 0.50 5/16
	33VIM5075	33V-1/8-5/16-24NF 0.75CC
	33VIM5100	33V-1/8-5/16-24NF 1CC
	33VIP4	PUSH-IN STR G1/8 F D4
	33VIP4003	33V-PUSH-IN D4 0.03 1/8 BSP
	33VIP4003M	33V-PUSH-IN D4 0.03 M 12X1
	33VIP4006	33V-PUSH-IN D4 0.06 1/8 BS
	33VIP4006M	33V-PUSH-IN D4 0.06 M 12X1
	33VIP4010	33V-PUSH-IN D4 0.10 1/8 BS
	33VIP4010M	33V-PUSH-IN D4 0.10 M 12X1
	33VIP4016	33V-PUSH-IN D4 0.16 1/8 BSP
	33VIP4016M	33V-PUSH-IN D4 0.16 M 12X1
	33VIP4020	33V-PUSH-IN D4 0.20 1/8 BSP
	33VIP4030	33V-PUSH-IN D4 0.30 1/8 BSP
	33VIP4050	33V-PUSH-IN D4 0.50 1/8 BSP
	33VIP4075	33V-1/8-PUSH-IN 0.75CC
	33VIP4075C	33V-1/8-5/16-24NF 0.75C
	33VIP4100C	33V-1/8-5/16-24NF 0.75C
	33VISF1003	33V-1VF 0.03 1/8 FOR BEARING
	33VISF1006	33V-1VF 0.06 1/8 FOR BEARING
	33VISF1010	33V-1VF 0.10 1/8 FOR BEARING 曼御的要反向安装
	33VISF1016	33V-1VF 0.16 1/8 FOR BEARING
	33VISF1020	33V-1VF 0.20 1/8 FOR BEARING
	33VISF1030	33V-1VF 0.30 1/8 FOR BEARING
	33VISF1050	33V-1VF 0.50 1/8 FOR BEARING
	33VISM5003	33V-1VM 0.03 5/16 FOR BEARING
	33VISM5006	33V-1VM 0.06 5/16 FOR BEARING
	33VISM5010	33V-1VM 0.10 5/16 FORBEARING
	33VISM5016	33V-1VM 0.16 5/16 FOR BEARING
	33VISM5020	33V-1VM 0.20 5/16 FOR BEARING
	33VISM5030	33V-1VM 0.30 5/16 FOR BEARING
	33VISM5050	33V-1VM 0.50 5/16 FOR BEARING
	33VLCM5003	33V-1VM 0.03 5/16-24NF
	33VLCM5006	33V-1VM 0.06 5/16-24NF
	33VLCM5010	33V-1VM 0.10 5/16-24NF
	33VLCM5016	33V-1VM 0.16 5/16-24NF
	33VLCM5020	33V-1VM 0.20 5/16-24NF
	33VLCM5030	33V-1VM 0.30 5/16-24NF
	33VLCM5050	33V-1VM 0.50 5/16-24NF
	33VLNF1003	33V-1VF 0.03 1/8
	33VLNF1006	33V-1VF 0.06 1/8
	33VLNF1010	33V-1VF 0.10 1/8
	33VLNF1016	33V-1VF 0.16 1/8
	33VLNF1020	33V-1VF 0.20 1/8
	33VLNF1030	33V-1VF 0.30 1/8
	33VLNF1050	33V-1VF 0.50 1/8
	33VLNM5003	33V-1VM 0.03 5/16-24NF
	33VLNM5006	33V-1VM 0.06 5/16-24NF
	33VLNM5010	33V-1VM 0.10 5/16-24NF
	33VLNM5016	33V-1VM 0.16 5/16-24NF
	33VLNM5020	33V-1VM 0.20 5/16-24NF
	33VLNM5030	33V-1VM 0.30 5/16-24NF
	33VLNM5050	33V-1VM 0.50 5/16-24NF
	33VTCF1003	33V-2VF 0.03 1/8
	33VTCF1006	33V-2VF 0.06 1/8
	33VTCF1010	33V-2VF 0.10 1/8
	33VTCF1016	33V-2VF 0.16 1/8
	33VTCF1030	33V-2VF 0.30 1/8
	33VTCF1050	33V-2VF 0.50 1/8
	33VTCM5006	33V-2VM 0.06 5/16-24NF
	33VTCM5010	33V-2VM 0.10 5/16-24NF
	33VTCM5016	33V-2VM 0.16 5/16-24NF
	33VTCM5020	33V-2VM 0.20 5/16-24NF
	33VTCM5030	33V-2VM 0.30 5/16-24NF
	33VTCM5050	33V-2VM 0.50 5/16-24NF
	33VTNF1003	33V-2VF 0.03 1/8
	33VTNF1006	33V-2VF 0.06 1/8
	33VTNF1010	33V-2VF 0.10 1/8
	33VTNF1016	33V-2VF 0.16 1/8
	33VTNF1020	33V-2VF 0.20 1/8
	33VTNF1030	33V-2VF 0.30 1/8
	33VTNF1050	33V-2VF 0.50 1/8
	33VTNM5003	33V-2VM 0.03 5/16-24NF
	33VTNM5006	33V-2VM 0.06 5/16-24NF
	33VTNM5010	33V-2VM 0.10 5/16-24NF
	33VTNM5016	33V-2VM 0.16 5/16-24NF
	33VTNM5020	33V-2VM 0.20 5/16-24NF
	33VTNM5030	33V-2VM 0.30 5/16-24NF
	33VTNM5050	33V-2VM 0.50 5/16-24NF
	33VXCF1010	33V-4VF 0.10 1/8
	33VXCF1016	33V-4VF 0.16 1/8
	33VXNF1006	33V-4VF 0.06 1/8
	33VXNF1030	33V-4VF 0.30 1/8
	33VXNF1050	33V-4VF 0.50 1/8
	33VXNM5006	33V-4VM 0.06 5/16-24NF
	33VXNM5010	33V-4VM 0.10 5/16-24NF
	33VXNM5016	33V-4VM 0.16 5/16-24NF
	33VXNM5020	33V-4VM 0.20 5/16-24NF
	33VXNM5030	33V-4VM 0.30 5/16-24NF
	33VXNM5050	33V-4VM 0.50 5/16-24NF

Part numbers - Accessories found

Availability	Part Number	Description	Price	Lot Size	Buy
	0006188	MANIFOLD-D/ROW 8 WAYS 1/8 BSP
	0006189	MANIFOLD-D/ROW 10 WAYS 1/8 BSP
	0006210	MANIFOLD-D/ROW 12 WAYS 1/8 BSP
	0006236	MANIFOLD-D/ROW 2 WAYS 1/8 BSP
	0006237	MANIFOLD-D/ROW 4 WAYS 1/8 BSP
	0006238	MANIFOLD-D/ROW 6 WAYS 1/8 BSP
	0006239	MANIFOLD-S/ROW 8 WAYS 1/8 BSP
	0006265	MANIFOLD-S/ROW 1 WAYS 1/8 BSP
	0006266	SINGLE ROW JUN 2W-1/8G
	0006267	SINGLE ROW JUN 3W 1/8G
	0006268	SINGLE ROW JUN 4W 1/8G
	0006274	MANIFOLD-S/ROW 6 WAYS 1/8 BSP
	0006276	MANIFOLD-S/ROW 7 WAYS 1/8 BSP
	0006277	MANIFOLD-S/ROW 9 WAYS 1/8 BSP
	0091354	NUT-5/16 UNF
	0092004	CONN-STRAIGHT 5/16 UNF
	0092052	CONN-STRAIGHT SD-D6 1/8BSP
	0093004	CONE-4MM
	0093006	CONE-6 MM
	0093008	CONE-8 MM
	0093010	CONE 10 MM
	0111151	PIPE CLIP-1WAY 4MM
	0111152	PIPE CLIP-2WAY 4MM
	0111153	PIPE CLIP-3WAY 4MM
	0111154	PIPE CLIP-4WAY 4MM
	0111156	PIPE CLIP-6WAY 4MM
	0111201	PIPE CLIP-1WAY 6MM
	0111202	PIPE CLIP-2WAY 6MM
	0111203	PIPE CLIP-3WAY 6MM
	0111204	PIPE CLIP-4WAY 6MM
	0111205	PIPE CLIP-5WAY 6MM
	0111251	PIPE CLIP-1WAY 8MM
	0111252	PIPE CLIP-2WAY 8MM
	0111254	PIPE CLIP-4WAY 8MM
	0111255	PIPE CLIP-5WAY 8MM
	0520103	UNILATERAL DISTRIBUTION FRAME
	0520104	4WAY JUNCTION SINGLE ROW1/8 BSP AISI 304
	0520105	UNILATERAL DISTRIBUTION FRAME
	0520108	8WAY JUNCTION SINGLE ROW1/8 BSP AISI 316
	0910073	CONN-STRAIGHT SD-D 4 1/8BSP
	0910090	CONN-STRAIGHT SD-D 6 1/8 BSP
	0936035	SWIV.CONN-1/8 BSP
	0936045	SWIV.CONN-STRAIGHT 1/8 BSP
	3071221	JUNCTION-S/ROW 1WAY
	3071301	MANIFOLD-S/ROW 8 WAYS 1/8 BSP
	3071302	MANIFOLD-S/ROW 2W 1/8BSP M10X1
	3071303	MANIFOLD-S/ROW 3W 1/8BSP M10X1
	3071304	MANIFOLD-S/ROW 4W 1/8BSP M10X1
	3071305	MANIFOLD-S/ROW 5W 1/8BSP M10X1
	3071306	MANIFOLD-S/ROW 6W 1/8BSP M10X1
	3071307	MANIFOLD-S/ROW 7W 1/8BSP M10X1
	3071308	MANIFOLD-S/ROW 8W 1/8BSP M10X1
	3071311	MANIFOLD-S/ROW 1WAY 1/8 BSP
	3071316	MANIFOLD-S/ROW 8 WAYS 1/8 BSP
	3071322	MANIFOLD-BILAT-2WAYS-1/8 BSP
	3071324	MANIFOLD-BILAT-4WAYS-1/8 BSP
	3071326	MANIFOLD-BILAT-6WAYS-1/8 BSP
	3071328	MANIFOLD-BILAT-8WAYS-1/8 BSP
	3071513	MANIFOLD UNIL. 2WAYS 1/8BSP M10X1
	3071515	MANIFOLD UNIL. 5WAYS 1/8BSP M10X1
	3084578	PUSH-IN STR G1/8 D6 - MP
	3084579	PUSH-IN STR M6 D4 - MP
	3084580	PUSH-IN 90 G1/8 D4
	3084587	PUSH-IN STR NPT1/8 D6 - HP
	3084588	PUSH-IN 90 NPT1/8 D4 - HP
	3084589	PUSH-IN 90 NPT1/8 D6 - HP
	3362023	HOSE-SAE 100 R7 1/4
	3362026	HOSE-OL5 4X8.3 P. MAX 210 BAR
	33VLNM5	VALVE 33 FITTING 1 WAY M
	33VTCF1	VALVE 33 FITTING 2 WAYS F 180° FT
	33VTCM5	VALVE 33 FITTING 2 WAYS M 180° FT
	33VTNF1	VALVE 33 FITTING 2 WAYS F 180°
	33VTNM5	VALVE 33 FITTING 2 WAYS M 180°
	33VXCF1	VALVE 33 FITTING 4 WAYS F FT
	33VXCM5	VALVE 33 FITTING 4 WAYS M FT
	33VXNF1	VALVE 33 FITTING 4 WAYS F
	33VXNM5	VALVE 33 FITTING 4 WAYS M
	5118000	TUBE-STEEL BUNDY 4X.71 (MT)-ZINCATO 不锈钢4
	5118000T	COPPER TUBE BUNDLE 4X.71 (MT) 3M!!!
	5118001	TUBE-STEEL BUNDY 6 X 0.71 ASTM-ZINC PLA
	5118001T	TUBE-STEEL BUNDY 6 X 0.71 ASTM
	5118002	TUBE-STEEL BUNDY 8 MM-ZINC PLATED
	5118002T	TUBE-STEEL BUNDY 8 MM
	5501201	TUBE-COPPER 4 M X0.5 (KG)
	5501203	TUBE-COPPER 6X1 (KG)
	5501204	TUBE-COPPER 8 M (KG)
	5717202	TUBE-NYLON 6.6 4X2.5 80bar 1150 psi.
	5717203	TUBE-NYLON 6.6 6X4 80bar 1150 psi.
	5717204	TUBE-NYLAFLOW 6.6 8X5 80bar 1150 psi.
	5717300	TUBE NYLON 6.6 4X3 30bar 420 psi.
	5717301	TUBE-RILSAN PA11 6X4.5 30bar 420 psi.
	5717302	TUBE-NYLON 6.6 8X6 30bar 420 psi.
