Válvulas 33V

Descargas
Nº de referencia

Válvulas dosificadoras línea Única

Características:
- Caudal: 0.015 - 0.16 / 0.20-0.50 / 0.75- 1.00
- Presión mínima: bar 12(175)
- Presión máxima:bar 50 (725)
- Presión máxima de relajación: bar  4 (58)
- Lubricantes admitidos: Aceite 32-2000 cSt ;  Grasa    NLGI 0
- Tiempo mínimo de relajación (second): 32-250 cSt; 10  260-1000 cSt; 200 NLGI 0 200

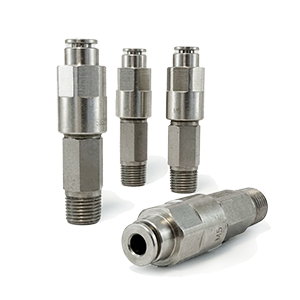

El sistema de válvulas 33V es uno de los últimos productos desarrollados por Dropsa en el campo de la lubricación por inyección.
Esta tecnología permite una dosificación precisa y segura, independientemente de la viscosidad del aceite , de la temperatura y de la presión.
El tamaño de este cartucho permite su uso en una amplia gama de aplicaciones. Además es fabricada, ensamblada y probada en una línea de producción automatizada, ofreciendo una excelente calidad y unas ventajas económicas concretas.
Su aplicación con la bomba ofrece un sistema de lubricación que garantiza un alto rendimiento a un coste que hasta ahora solo era posible utilizando sistemas manuales.

Ventajas:

* La rosca 1/8"-1/8" BSPP permite realizar nuevas configuraciones.
* Roscado paralelo y juntas OR en conformidad con las especificaciones de la industria automovilística.
* Posibilidad de aplicar la válvula directamente al punto, en el distribuidor o bien internamente en la máquina.
* Posibilidad de inserta la válvula directamente en la estructura de la máquina.
* Alta fiabilidad. Las válvulas del sistema 33V son ensambladas, probadas y certificadas mediante un sistema robotizado.
