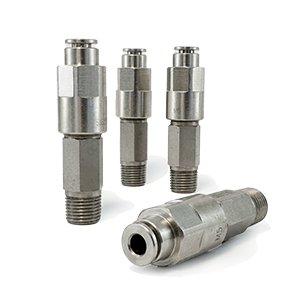

Série 33V

Downloads
Códigos de Produtos

Injetores com deslocamento positivo

Especificações:
- Vazões: 0.015 - 0.16 / 0.20-0.50 / 0.75- 1.00 cm³
- Pressão mínima: 12 bar (175 psi)
- Pressão máxima: 50 bar (725 psi)
- Pressão máxima de despressurização: 4 bar (58 psi)
- Lubrificante: óleo 32-2000 cSt
graxa NLGI-0
- Tempo mínimo de despressurização: 10 segundos com óleo de 32 a 250 cSt; 200 segundos com óleo de 260 a 1000 cSt; 200 segundos com graxa NLGI-0

O sistema de injeção 33V, desenvolvido pela DropsA, é uma das tecnologias em descolamento direto positivo mais recentes.
A tocnologia oferece uma dosagem precisa e a prova de erros de óleos independentemente da viscosidade, temperatura ou pressão.
O novo formato de cartucho permite diversas possibilidades de aplicações. Ele também é completamente produzido, montado e testado em uma linha de produção automatizada, o que oferece grande redução de custos e excelente qualidade.
Quando combinado com um pacote de bombas competitivo, como a bomba elétrica Smart, pode-se obter um sistema de alta performance que, anteriormente, só poderiam ser atingidos com a escolha de um sistema de orifícios manual.

Características do Produto:
- cartucho injetor de 1/8"- 1/8" BSPP que permite novas configurações.
- rosca paralela e com vedação de acordo com as especificações automotivas.
- montagem direta no ponto, montagem na barra de distribuição e possibilidade de montagem interna na máquina.
- possibilidade de inserir a válvula diretamente na estrutura da máquina.
- alta confiabilidade. Os injetores 33V são completamente montados, testados e certificados em um sistema robotizado.

Downloads

Manuais

Modelos 3D

33V (66.18 KB).

Formulário de inscrição 3D.

PART NUMBERS

Part numbers - Models found

Availability	Part Number	Description	Price	Lot Size	Buy
	33V0015	33V-1/8-1/8 0.015CC
	33V003	33V-1/8-1/8 0.03CC
	33V003C	33V-1/8-1/8 0.03CC CYLINDRICAL
	33V006	33V-1/8-1/8 0.06CC
	33V006C	VALVE-33 1/8-1/8 0.06CC VITON
	33V010	33V-1/8-1/8 0.10CC
	33V010C	33V-1/8-1/8 0.10CC CYLINDRICAL
	33V016	33V-1/8-1/8 0.16CC
	33V016C	33V-1/8-1/8 0.16CC CYLINDRICAL
	33V020	33V-1/8-1/8 0.2CC
	33V020C	33V-G1/8 G1/8 0.2CC
	33V030	33V-1/8-1/8 0.3CC
	33V030C	33V-G1/8 G1/8 0.3CC
	33V050	33V-1/8-1/8 0.5CC
	33V050C	33V-G1/8 G1/8 0.5CC
	33VCCF1	VALVE 33 FITTING 2 WAYS F 90° FT
	33VCCF1003	33V-2VF 0.03 1/8
	33VCCF1006	33V-2VF 0.06 1/8
	33VCCF1010	33V-2VF 0.10 1/8
	33VCCF1016	33V-2VF 0.16 1/8
	33VCCF1030	33V-2VF 0.30 1/8
	33VCCF1050	33V-2VF 0.50 1/8
	33VCCM5	VALVE 33 FITTING 2 WAYS M 90° FT
	33VCCM5006	33V-2VM 0.06 5/16-24NF
	33VCCM5010	33V-2VM 0.10 5/16-24NF
	33VCCM5016	33V-2VM 0.16 5/16-24NF
	33VCCM5030	33V-2VM 0.30 5/16-24NF
	33VCNF1	VALVE 33 FITTING 2 WAYS F 90°
	33VCNF1003	33V-2VF 0.03 1/8
	33VCNF1006	33V-2VF 0.06 1/8
	33VCNF1010	33V-2VF 0.10 1/8
	33VCNF1016	33V-2VF 0.16 1/8
	33VCNF1020	33V-2VF 0.20 1/8
	33VCNF1030	33V-2VF 0.30 1/8
	33VCNF1050	33V-2VF 0.50 1/8
	33VCNM5	VALVE 33 FITTING 2 WAYS M 90°
	33VCNM5003	33V-2VM 0.03 5/16-24NF
	33VCNM5006	33V-2VM 0.06 5/16-24NF
	33VCNM5010	33V-2VM 0.10 5/16-24NF
	33VCNM5016	33V-2VM 0.16 5/16-24NF
	33VCNM5020	33V-2VM 0.20 5/16-24NF
	33VCNM5030	33V-2VM 0.30 5/16-24NF
	33VCNM5050	33V-2VM 0.50 5/16-24NF
	33VECF1	VALVE 33 FITTING 3 WAYS F FT
	33VECF1003	33V-3VF 0.03 1/8
	33VECF1006	33V-3VF 0.06 1/8
	33VECF1010	33V-3VF 0.10 1/8
	33VECF1016	33V-3VF 0.16 1/8
	33VECF1030	33V-3VF 0.30 1/8
	33VECF1050	33V-3VF 0.50 1/8
	33VECM5010	33V-3VM 0.10 5/16-24NF
	33VECM5016	33V-3VM 0.16 5/16-24NF
	33VECM5030	33V-3VM 0.30 5/16-24NF
	33VENF1003	33V-3VF 0.03 1/8
	33VENF1006	33V-3VF 0.06 1/8
	33VENF1010	33V-3VF 0.10 1/8
	33VENF1016	33V-3VF 0.16 1/8
	33VENF1020	33V-3VF 0.20 1/8
	33VENF1030	33V-3VF 0.30 1/8
	33VENF1050	33V-3VF 0.50 1/8
	33VENM5006	33V-3VM 0.06 5/16-24NF
	33VENM5010	33V-3VM 0.10 5/16-24NF
	33VENM5016	33V-3VM 0.16 5/16-24NF
	33VENM5020	33V-3VM 0.20 5/16-24NF
	33VENM5030	33V-3VM 0.30 5/16-24NF
	33VENM5050	33V-3VM 0.50 5/16-24NF
	33VIF1	VALVE 33 FITTING 1/8 F
	33VIF8075	33V-1/8-M8X1 F 0.75CC
	33VIF8100	33V-1/8-M8X1 F 1CC
	33VIM5	33V-STRAIGHT FITTING M 5/16
	33VIM5003	33V-1VM 0.03 5/16
	33VIM5006	33V-1VM 0.06 5/16
	33VIM5010	33V-1VM 0.10 5/16
	33VIM5016	33V-1VM 0.16 5/16
	33VIM5020	33V-1VM 0.20 5/16
	33VIM5030	33V-1VM 0.30 5/16
	33VIM5050	33V-1VM 0.50 5/16
	33VIM5075	33V-1/8-5/16-24NF 0.75CC
	33VIM5100	33V-1/8-5/16-24NF 1CC
	33VIP4	PUSH-IN STR G1/8 F D4
	33VIP4003	33V-PUSH-IN D4 0.03 1/8 BSP
	33VIP4003M	33V-PUSH-IN D4 0.03 M 12X1
	33VIP4006	33V-PUSH-IN D4 0.06 1/8 BS
	33VIP4006M	33V-PUSH-IN D4 0.06 M 12X1
	33VIP4010	33V-PUSH-IN D4 0.10 1/8 BS
	33VIP4010M	33V-PUSH-IN D4 0.10 M 12X1
	33VIP4016	33V-PUSH-IN D4 0.16 1/8 BSP
	33VIP4016M	33V-PUSH-IN D4 0.16 M 12X1
	33VIP4020	33V-PUSH-IN D4 0.20 1/8 BSP
	33VIP4030	33V-PUSH-IN D4 0.30 1/8 BSP
	33VIP4050	33V-PUSH-IN D4 0.50 1/8 BSP
	33VIP4075	33V-1/8-PUSH-IN 0.75CC
	33VIP4075C	33V-1/8-5/16-24NF 0.75C
	33VIP4100C	33V-1/8-5/16-24NF 0.75C
	33VISF1003	33V-1VF 0.03 1/8 FOR BEARING
	33VISF1006	33V-1VF 0.06 1/8 FOR BEARING
	33VISF1010	33V-1VF 0.10 1/8 FOR BEARING 曼御的要反向安装
	33VISF1016	33V-1VF 0.16 1/8 FOR BEARING
	33VISF1020	33V-1VF 0.20 1/8 FOR BEARING
	33VISF1030	33V-1VF 0.30 1/8 FOR BEARING
	33VISF1050	33V-1VF 0.50 1/8 FOR BEARING
	33VISM5003	33V-1VM 0.03 5/16 FOR BEARING
	33VISM5006	33V-1VM 0.06 5/16 FOR BEARING
	33VISM5010	33V-1VM 0.10 5/16 FORBEARING
	33VISM5016	33V-1VM 0.16 5/16 FOR BEARING
	33VISM5020	33V-1VM 0.20 5/16 FOR BEARING
	33VISM5030	33V-1VM 0.30 5/16 FOR BEARING
	33VISM5050	33V-1VM 0.50 5/16 FOR BEARING
	33VLCM5003	33V-1VM 0.03 5/16-24NF
	33VLCM5006	33V-1VM 0.06 5/16-24NF
	33VLCM5010	33V-1VM 0.10 5/16-24NF
	33VLCM5016	33V-1VM 0.16 5/16-24NF
	33VLCM5020	33V-1VM 0.20 5/16-24NF
	33VLCM5030	33V-1VM 0.30 5/16-24NF
	33VLCM5050	33V-1VM 0.50 5/16-24NF
	33VLNF1003	33V-1VF 0.03 1/8
	33VLNF1006	33V-1VF 0.06 1/8
	33VLNF1010	33V-1VF 0.10 1/8
	33VLNF1016	33V-1VF 0.16 1/8
	33VLNF1020	33V-1VF 0.20 1/8
	33VLNF1030	33V-1VF 0.30 1/8
	33VLNF1050	33V-1VF 0.50 1/8
	33VLNM5003	33V-1VM 0.03 5/16-24NF
	33VLNM5006	33V-1VM 0.06 5/16-24NF
	33VLNM5010	33V-1VM 0.10 5/16-24NF
	33VLNM5016	33V-1VM 0.16 5/16-24NF
	33VLNM5020	33V-1VM 0.20 5/16-24NF
	33VLNM5030	33V-1VM 0.30 5/16-24NF
	33VLNM5050	33V-1VM 0.50 5/16-24NF
	33VTCF1003	33V-2VF 0.03 1/8
	33VTCF1006	33V-2VF 0.06 1/8
	33VTCF1010	33V-2VF 0.10 1/8
	33VTCF1016	33V-2VF 0.16 1/8
	33VTCF1030	33V-2VF 0.30 1/8
	33VTCF1050	33V-2VF 0.50 1/8
	33VTCM5006	33V-2VM 0.06 5/16-24NF
	33VTCM5010	33V-2VM 0.10 5/16-24NF
	33VTCM5016	33V-2VM 0.16 5/16-24NF
	33VTCM5020	33V-2VM 0.20 5/16-24NF
	33VTCM5030	33V-2VM 0.30 5/16-24NF
	33VTCM5050	33V-2VM 0.50 5/16-24NF
	33VTNF1003	33V-2VF 0.03 1/8
	33VTNF1006	33V-2VF 0.06 1/8
	33VTNF1010	33V-2VF 0.10 1/8
	33VTNF1016	33V-2VF 0.16 1/8
	33VTNF1020	33V-2VF 0.20 1/8
	33VTNF1030	33V-2VF 0.30 1/8
	33VTNF1050	33V-2VF 0.50 1/8
	33VTNM5003	33V-2VM 0.03 5/16-24NF
	33VTNM5006	33V-2VM 0.06 5/16-24NF
	33VTNM5010	33V-2VM 0.10 5/16-24NF
	33VTNM5016	33V-2VM 0.16 5/16-24NF
	33VTNM5020	33V-2VM 0.20 5/16-24NF
	33VTNM5030	33V-2VM 0.30 5/16-24NF
	33VTNM5050	33V-2VM 0.50 5/16-24NF
	33VXCF1010	33V-4VF 0.10 1/8
	33VXCF1016	33V-4VF 0.16 1/8
	33VXNF1006	33V-4VF 0.06 1/8
	33VXNF1030	33V-4VF 0.30 1/8
	33VXNF1050	33V-4VF 0.50 1/8
	33VXNM5006	33V-4VM 0.06 5/16-24NF
	33VXNM5010	33V-4VM 0.10 5/16-24NF
	33VXNM5016	33V-4VM 0.16 5/16-24NF
	33VXNM5020	33V-4VM 0.20 5/16-24NF
	33VXNM5030	33V-4VM 0.30 5/16-24NF
	33VXNM5050	33V-4VM 0.50 5/16-24NF

Part numbers - Accessories found

Availability	Part Number	Description	Price	Lot Size	Buy
	0006188	MANIFOLD-D/ROW 8 WAYS 1/8 BSP
	0006189	MANIFOLD-D/ROW 10 WAYS 1/8 BSP
	0006210	MANIFOLD-D/ROW 12 WAYS 1/8 BSP
	0006236	MANIFOLD-D/ROW 2 WAYS 1/8 BSP
	0006237	MANIFOLD-D/ROW 4 WAYS 1/8 BSP
	0006238	MANIFOLD-D/ROW 6 WAYS 1/8 BSP
	0006239	MANIFOLD-S/ROW 8 WAYS 1/8 BSP
	0006265	MANIFOLD-S/ROW 1 WAYS 1/8 BSP
	0006266	SINGLE ROW JUN 2W-1/8G
	0006267	SINGLE ROW JUN 3W 1/8G
	0006268	SINGLE ROW JUN 4W 1/8G
	0006274	MANIFOLD-S/ROW 6 WAYS 1/8 BSP
	0006276	MANIFOLD-S/ROW 7 WAYS 1/8 BSP
	0006277	MANIFOLD-S/ROW 9 WAYS 1/8 BSP
	0091354	NUT-5/16 UNF
	0092004	CONN-STRAIGHT 5/16 UNF
	0092052	CONN-STRAIGHT SD-D6 1/8BSP
	0093004	CONE-4MM
	0093006	CONE-6 MM
	0093008	CONE-8 MM
	0093010	CONE 10 MM
	0111151	PIPE CLIP-1WAY 4MM
	0111152	PIPE CLIP-2WAY 4MM
	0111153	PIPE CLIP-3WAY 4MM
	0111154	PIPE CLIP-4WAY 4MM
	0111156	PIPE CLIP-6WAY 4MM
	0111201	PIPE CLIP-1WAY 6MM
	0111202	PIPE CLIP-2WAY 6MM
	0111203	PIPE CLIP-3WAY 6MM
	0111204	PIPE CLIP-4WAY 6MM
	0111205	PIPE CLIP-5WAY 6MM
	0111251	PIPE CLIP-1WAY 8MM
	0111252	PIPE CLIP-2WAY 8MM
	0111254	PIPE CLIP-4WAY 8MM
	0111255	PIPE CLIP-5WAY 8MM
	0520103	UNILATERAL DISTRIBUTION FRAME
	0520104	4WAY JUNCTION SINGLE ROW1/8 BSP AISI 304
	0520105	RIPART UNIL 5VIE SECOND 1/8GAS AISI 316
	0520108	8WAY JUNCTION SINGLE ROW1/8 BSP AISI 316
	0910073	CONN-STRAIGHT SD-D 4 1/8BSP
	0910090	CONN-STRAIGHT SD-D 6 1/8 BSP
	0936035	SWIV.CONN-1/8 BSP
	0936045	SWIV.CONN-STRAIGHT 1/8 BSP
	3071221	JUNCTION-S/ROW 1WAY
	3071301	MANIFOLD-S/ROW 8 WAYS 1/8 BSP
	3071302	MANIFOLD-S/ROW 2W 1/8BSP M10X1
	3071303	MANIFOLD-S/ROW 3W 1/8BSP M10X1
	3071304	MANIFOLD-S/ROW 4W 1/8BSP M10X1
	3071305	MANIFOLD-S/ROW 5W 1/8BSP M10X1
	3071306	MANIFOLD-S/ROW 6W 1/8BSP M10X1
	3071307	MANIFOLD-S/ROW 7W 1/8BSP M10X1
	3071308	MANIFOLD-S/ROW 8W 1/8BSP M10X1
	3071311	MANIFOLD-S/ROW 1WAY 1/8 BSP
	3071316	MANIFOLD-S/ROW 8 WAYS 1/8 BSP
	3071322	MANIFOLD-BILAT-2WAYS-1/8 BSP
	3071324	MANIFOLD-BILAT-4WAYS-1/8 BSP
	3071326	MANIFOLD-BILAT-6WAYS-1/8 BSP
	3071328	MANIFOLD-BILAT-8WAYS-1/8 BSP
	3071513	MANIFOLD UNIL. 2WAYS 1/8BSP M10X1
	3071515	MANIFOLD UNIL. 5WAYS 1/8BSP M10X1
	3084578	PUSH-IN STR G1/8 D6 - MP
	3084579	PUSH-IN STR M6 D4 - MP
	3084580	PUSH-IN 90 G1/8 D4
	3084587	PUSH-IN STR NPT1/8 D6 - HP
	3084588	PUSH-IN 90 NPT1/8 D4 - HP
	3084589	PUSH-IN 90 NPT1/8 D6 - HP
	3362023	HOSE-SAE 100 R7 1/4
	3362026	HOSE-OL5 4X8.3 P. MAX 210 BAR
	33VLNM5	VALVE 33 FITTING 1 WAY M
	33VTCF1	VALVE 33 FITTING 2 WAYS F 180° FT
	33VTCM5	VALVE 33 FITTING 2 WAYS M 180° FT
	33VTNF1	VALVE 33 FITTING 2 WAYS F 180°
	33VTNM5	VALVE 33 FITTING 2 WAYS M 180°
	33VXCF1	VALVE 33 FITTING 4 WAYS F FT
	33VXCM5	VALVE 33 FITTING 4 WAYS M FT
	33VXNF1	VALVE 33 FITTING 4 WAYS F
	33VXNM5	VALVE 33 FITTING 4 WAYS M
	5118000	TUBE-STEEL BUNDY 4X.71 (MT)-ZINCATO 不锈钢4
	5118000T	TUBE-STEEL BUNDY 4X.71 (MT)
	5118001	TUBE-STEEL BUNDY 6 X 0.71 ASTM-ZINC PLA
	5118001T	TUBE-STEEL BUNDY 6 X 0.71 ASTM
	5118002	TUBE-STEEL BUNDY 8 MM-ZINC PLATED
	5118002T	TUBE-STEEL BUNDY 8 MM
	5501201	TUBE-COPPER 4 M X0.5 (KG)
	5501203	TUBE-COPPER 6X1 (KG)
	5501204	TUBE-COPPER 8 M (KG)
	5717202	TUBE-NYLON 6.6 4X2.5 80bar 1150 psi.
	5717203	TUBE-NYLON 6.6 6X4 80bar 1150 psi.
	5717204	TUBE-NYLAFLOW 6.6 8X5 80bar 1150 psi.
	5717300	TUBE NYLON 6.6 4X3 30bar 420 psi.
	5717301	TUBE-RILSAN PA11 6X4.5 30bar 420 psi.
	5717302	TUBE-NYLON 6.6 8X6 30bar 420 psi.
